Azure Analysis Services Web Designer

I’m a long time fan of Analysis Services, and this latest feature is a really cool addition to the offering. Currently in Preview, Azure Analysis Services Web Designer offers the following functionality that extends Azure Analysis Services, all through a simple web UI:

  • Add a new logical server in Azure
  • Create a new Analysis Services model from SQL DB, Azure SQL DW and….Power BI workbooks! (More data sources to come)
  • Browse an existing Analysis Services model and add new measures for quick validation
  • Open an existing Analysis Services model as a Visual Studio Project, in Excel, or in Power BI
  • Edit an existing Analysis Services model using TMSL (Tabular Model Scripting Language)

Example – Creating a Model from Power BI Desktop

In this example, I’ve created a simple Power BI workbook (.pbix file) that’s connecting to an Azure SQL DB instance running the sample AdventureWorks database:

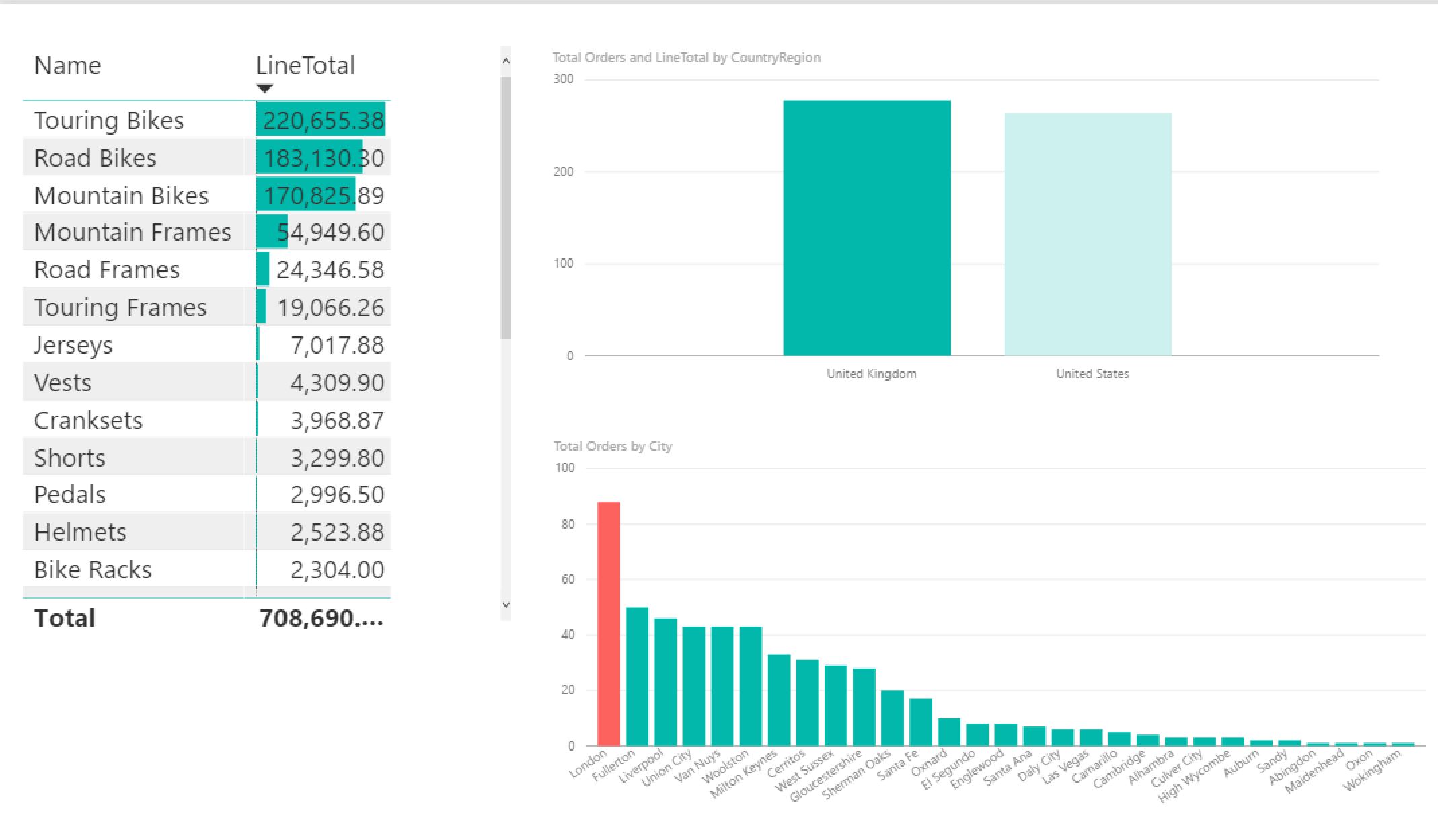

Simple Report

Simple Power BI Report

To connect to the new service, I can access via the Azure portal or go direct to https://analysisservices.azure.com:

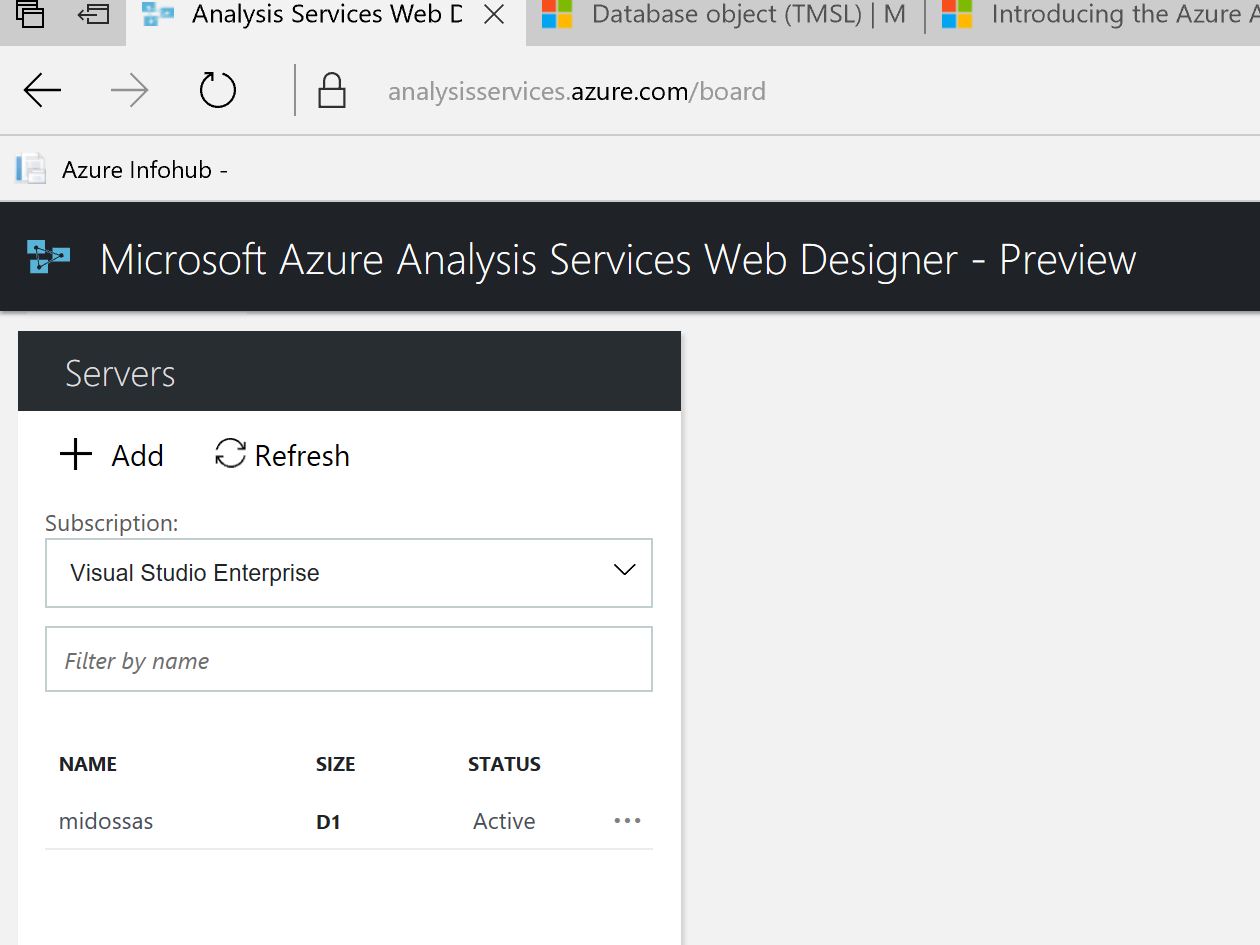

AAS Web Designer Portal

Azure Analysis Services Web Designer Portal

On this occasion, I’ll use the server I already have and instead go straight to adding a new model:

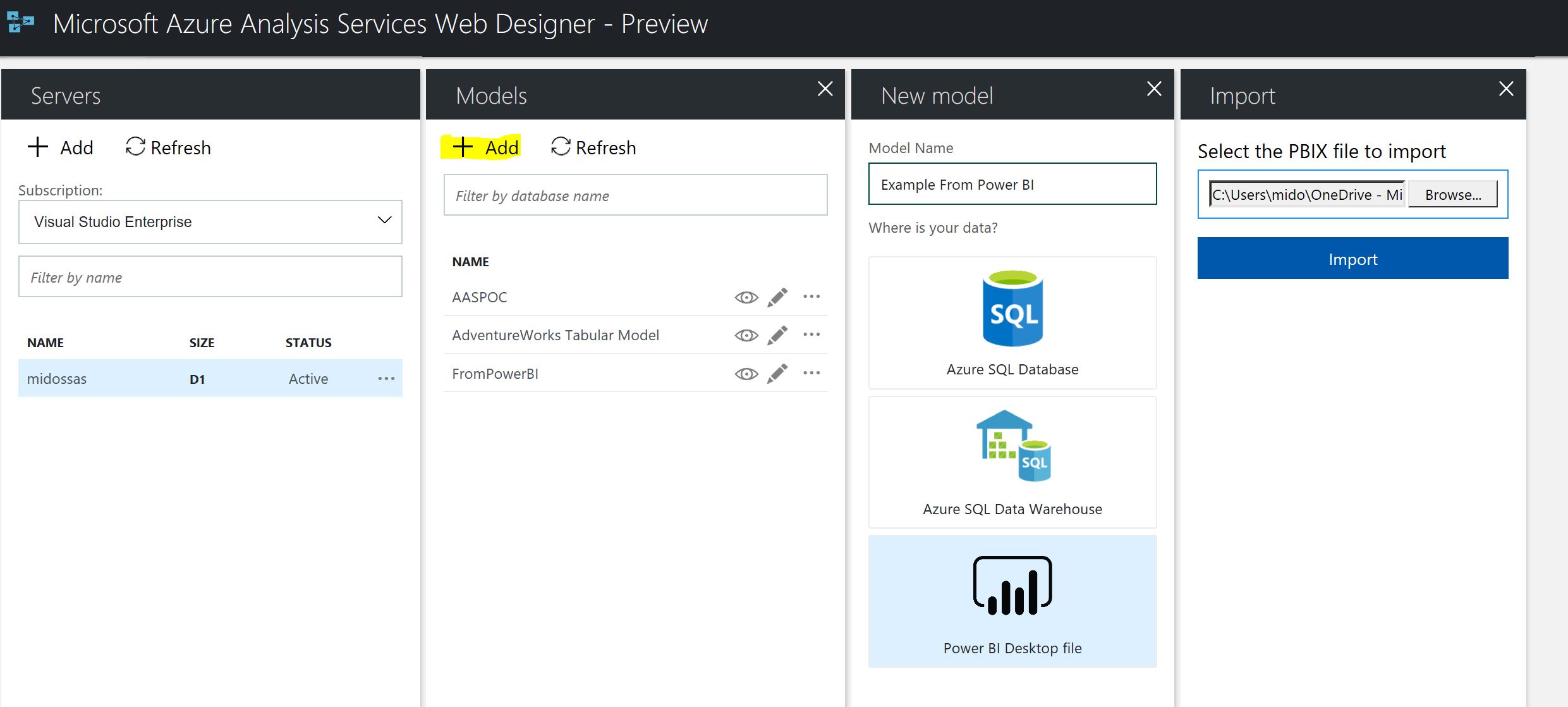

CreateModelFromPowerBI

Importing a Model from Power BI

Once created, I can browse the model in the Designer:

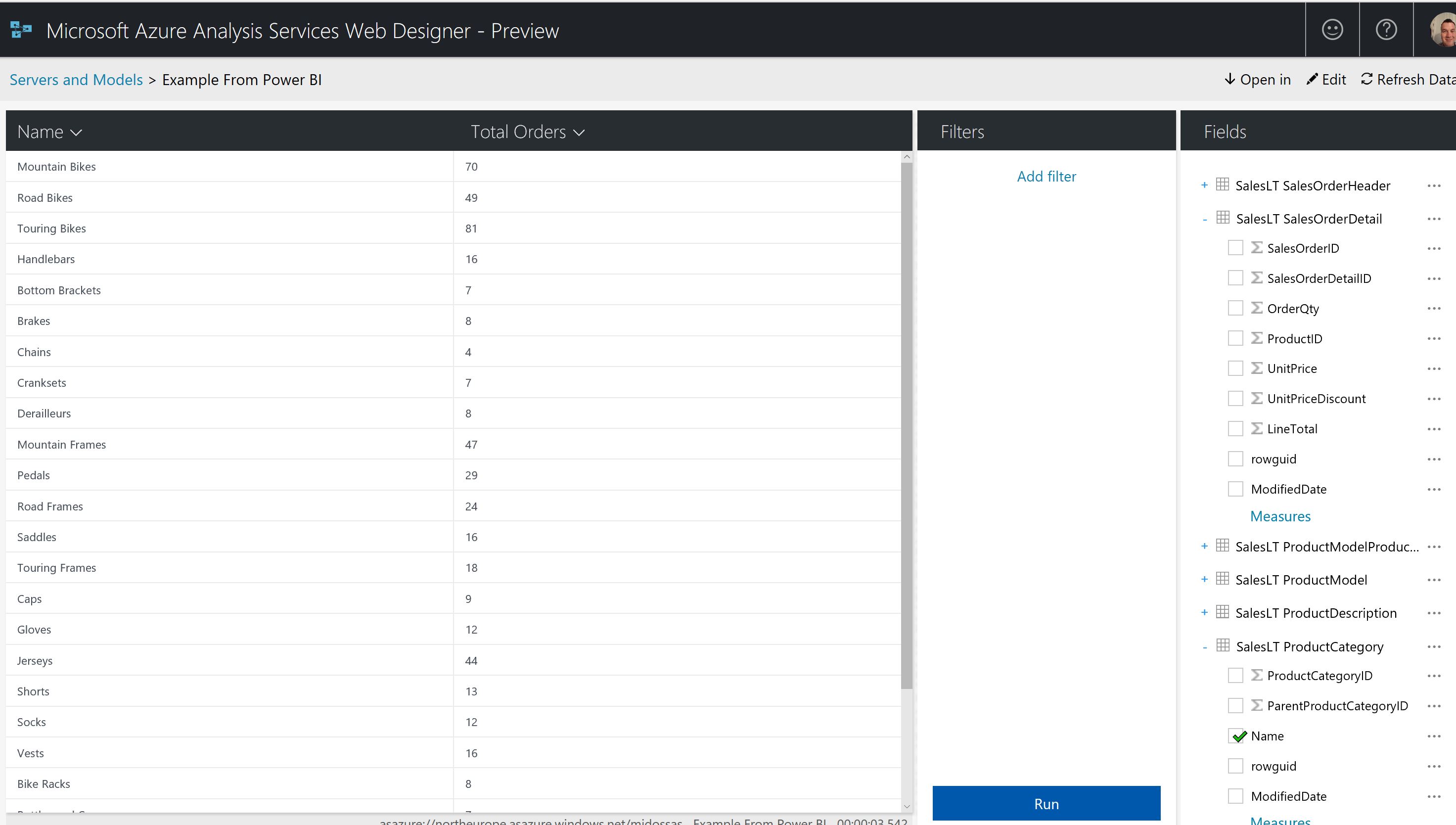

BrowseModel

Browse Model

Or open it using Power BI, Excel or Visual Studio:

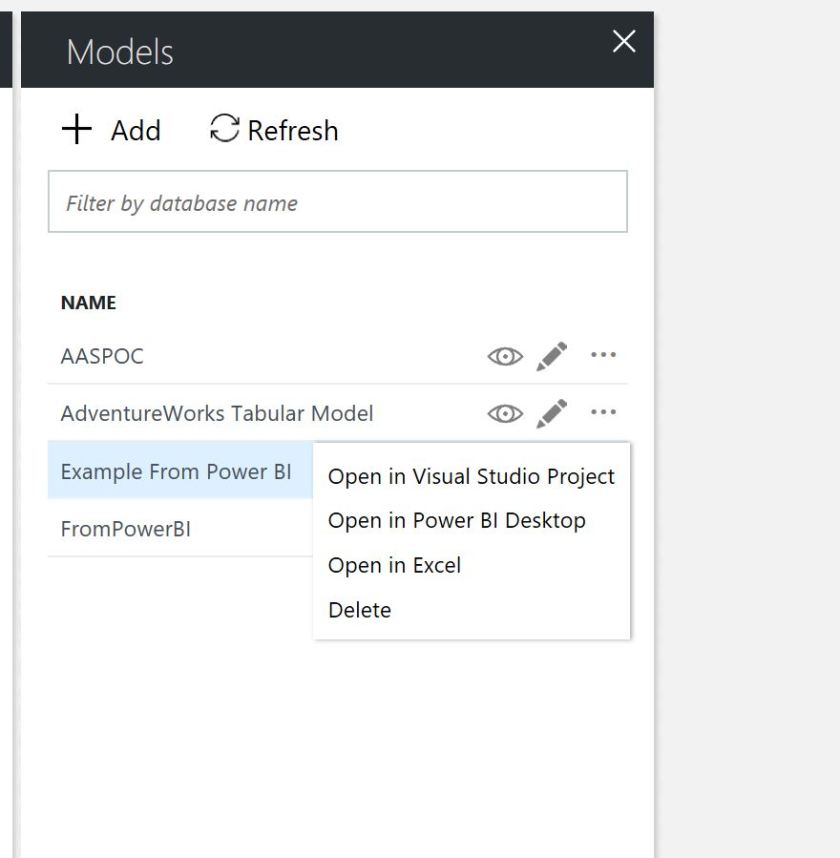

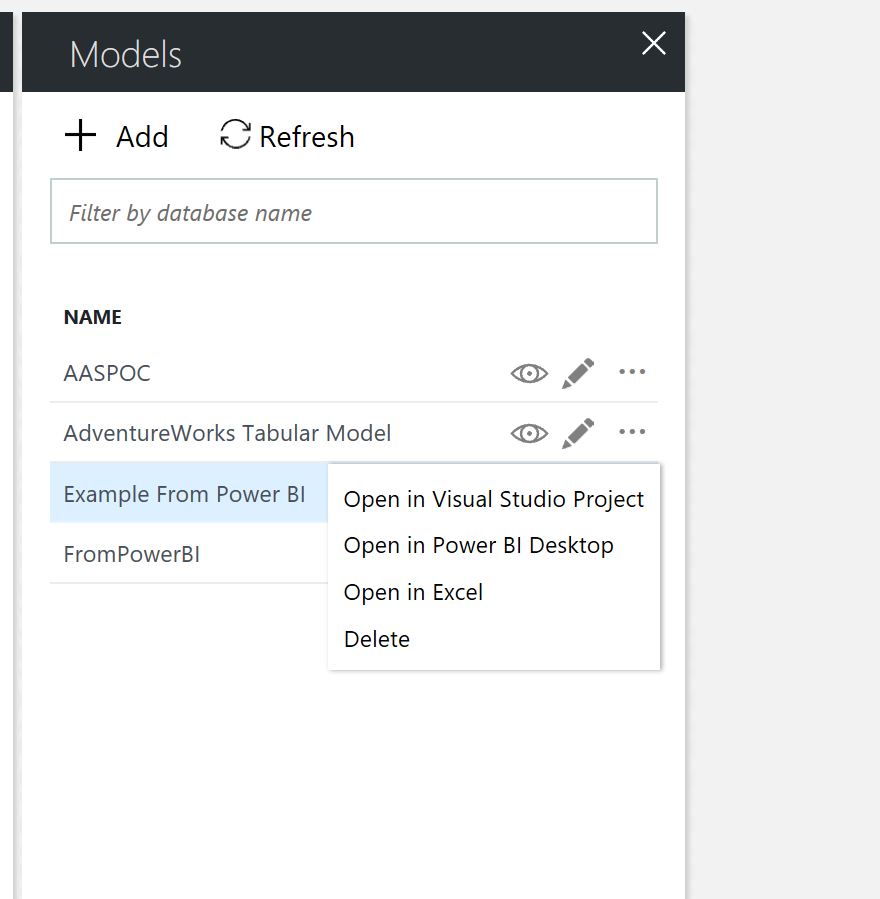

Open Options

Open Model Options

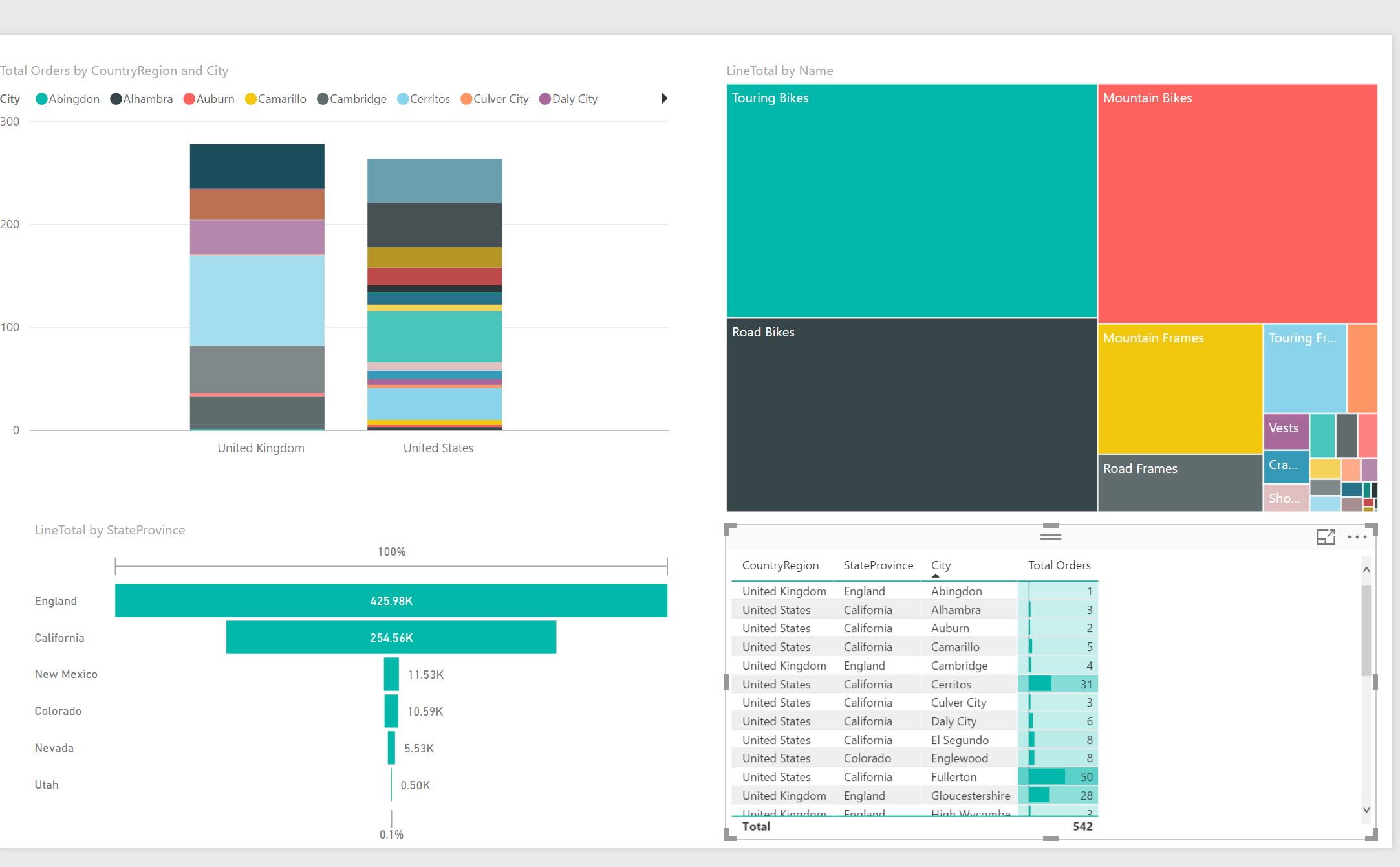

Pbi From AAS Designer

Power BI From Published Model

This is in preview right now, with many features still to come. The ability to import Power BI models into Analysis Services is a massive feature in its own right, but aside from that it already shows how you can quickly create and modify models without having to delve into Visual Studio/SQL Server Data Tools. New features are coming every month, so keep on eye on the team blog (below) to follow its progress.

Further Reading

Introducing Azure Analysis Services Web Designer

Analysis Services Team Blog
